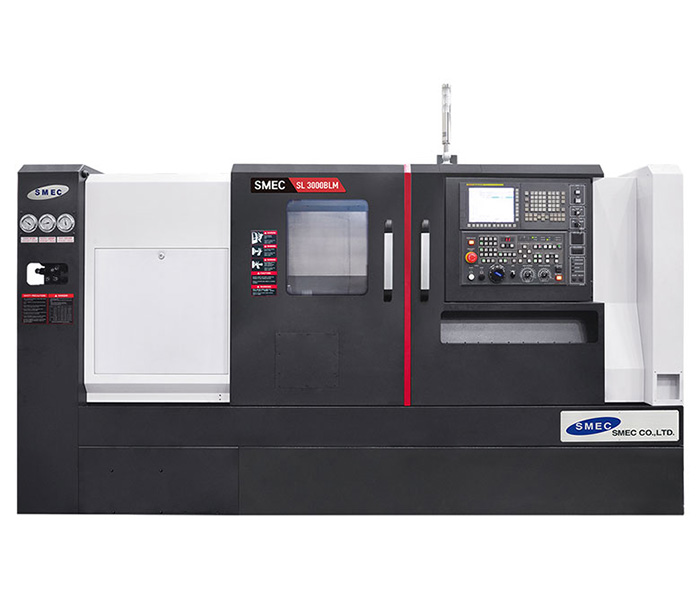

SL 3000BLM

SL 3000BLM

Specification & Technical Data

Capacity

Swing Over the Bed
25.60″
Swing Over the Cross Slide
18.90″
Max. Turning Diameter
15.95″
Max. Milling Diameter
16.93″
Max. Turning Length
37.64″

Main Spindle

Chuck Size
12″
Spindle speed
3,000 rpm
Spindle Nose
A2-8
Bore Diameter
4.14″
Draw tube I.D.
3.54″
Spindle motor (Cont./Max)
24.81/34.87 hp

Travel

Axis Travel (X/Z)
9.65″/40.95″
Guide ways
Box Guide
Rapid Traverse Rate (X/Z)
944.89/1,181.11 inch/min

Turret

Number of Tool Positions
12[24] (BMT65)
Indexing Time
0.2 sec
Shank Size for Square Tool
1″
Shank Size for Boring Bar
2″
Rotary Tool Speed
5,000 rpm
Rotary Tool Motor(Cont./Max)
4.97/7.38 hp

Tailstock (quill)

Tailstock Quill Travel
3.94″
Tailstock Quill Diameter
4.34″

General

Floor Space (with C/C) (L×W)
143″ x 64″(187″ x 64″)
Machine Weight
14,110 lbs.
Controller
Fanuc 0i-TF+
Specifications subject to change without notice.
Box Way (Chuck)

12″ (A2-8) Box Way
